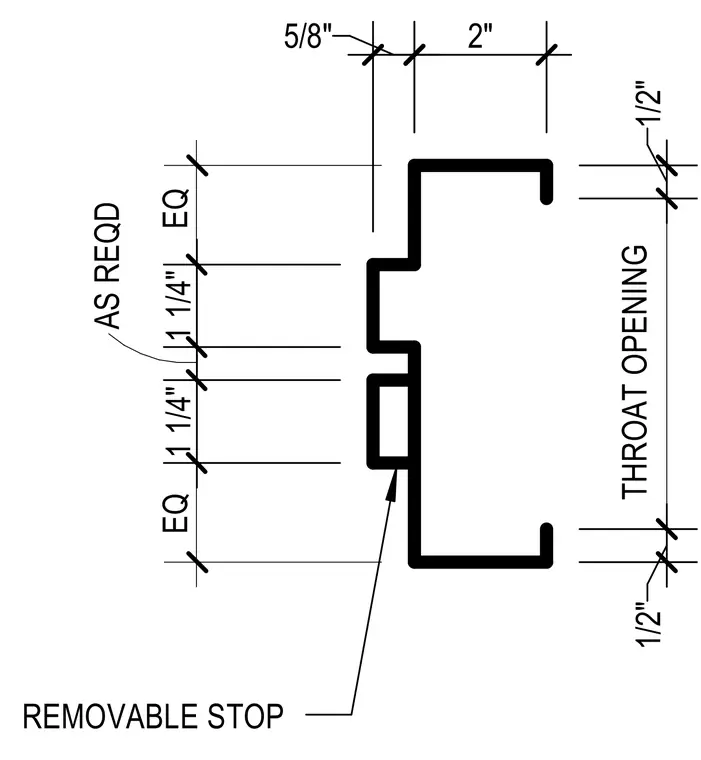

A metal window frame profile features a removable stop with dimensions of one and one-quarter inches and equal spacings as required. The throat opening measures with half-inch clearances and a two-inch main channel depth. Additional five-eighth-inch dimensioning locates the stop relative to the exterior face.
