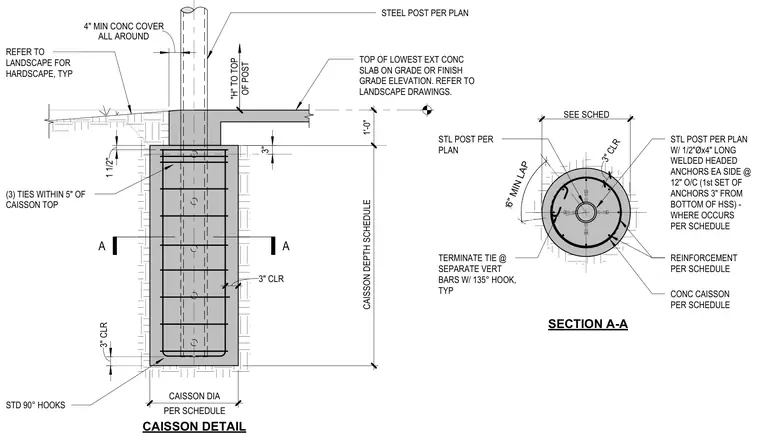

A structural steel post is embedded within a cast-in-place concrete caisson and tied to an adjacent exterior slab on grade. The steel post is sized per plan and equipped with one-half-inch diameter by four-inch long welded headed anchors on each side spaced at twelve inches on center, with the first set located three inches from the bottom of the hollow structural section. The concrete caisson features vertical reinforcing bars and horizontal ties per schedule, with three ties placed within five inches of the caisson top using standard ninety-degree hooks. Additional reinforcing details include three inches of concrete clear cover at the sides and bottom, and a six-inch minimum lap for vertical bars where applicable. The top of the caisson interfaces with the lowest exterior concrete slab on grade and surrounding hardscape per landscape drawings.
A CAISSON DETAIL SECTION A-A (3) TIES WITHIN 5" OF CAISSON TOP STD 90° HOOKS STEEL POST PER PLAN TOP OF LOWEST EXT CONC SLAB ON GRADE OR FINISH GRADE ELEVATION. REFER TO LANDSCAPE DRAWINGS. CONC CAISSON PER SCHEDULE STL POST PER PLAN W/ 1/2"Øx4" LONG WELDED HEADED ANCHORS EA SIDE @ 12" O/C (1st SET OF ANCHORS 3" FROM BOTTOM OF HSS) - WHERE OCCURS PER SCHEDULE TERMINATE TIE @ SEPARATE VERT BARS W/ 135° HOOK, TYP SEE SCHED A 3" CLR 1 1/2" 3" 3" CLR 3" CLR PER SCHEDULE CAISSON DIA CAISSON DEPTH SCHEDULE 1'-0" REINFORCEMENT PER SCHEDULE 6" MIN LAP STL POST PER PLAN "H" TO TOP OF POST REFER TO LANDSCAPE FOR HARDSCAPE, TYP ALL AROUND 4" MIN CONC COVER
