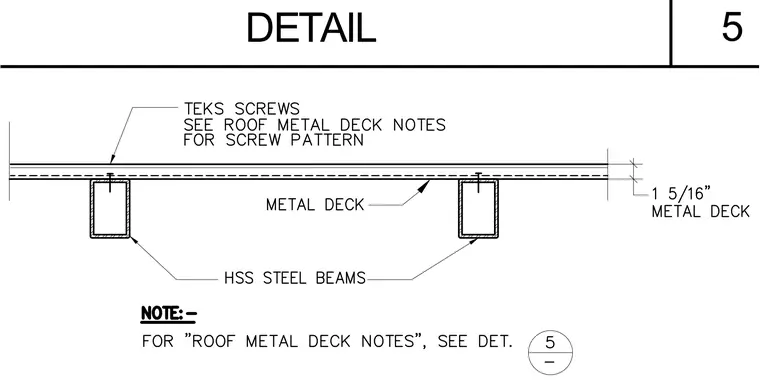

A one-and-five-sixteenth-inch metal deck bears continuously across hollow structural section steel beams. Teks screws secure the metal deck to the top flange of the steel framing members, with screw patterns referenced from roof metal deck notes.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
