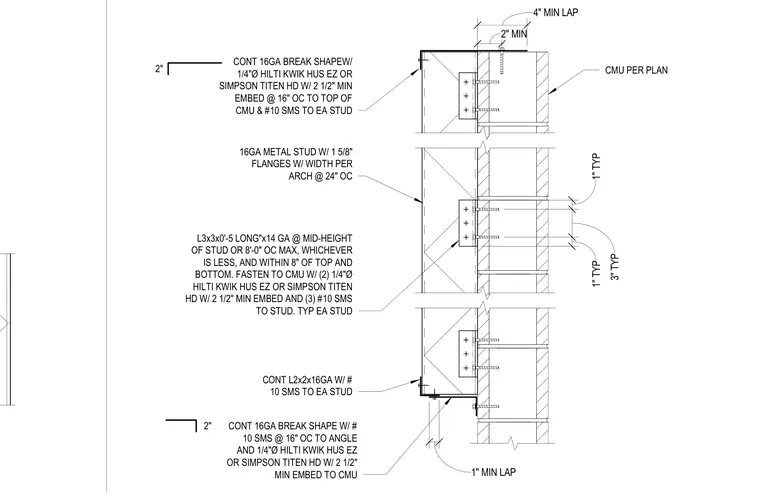

Sixteen-gauge metal studs with one-and-five-eighths-inch flanges are spaced at twenty-four inches on center and secured to a concrete masonry unit wall. A continuous sixteen-gauge break shape is anchored to the top of the CMU with one-quarter-inch diameter Hilti Kwik Hus EZ or Simpson Titen HD screws having a two-and-a-half-inch minimum embedment at sixteen inches on center, and connected to each stud with number ten sheet metal screws. Lateral support is provided by L3x3x0'-5" long by fourteen-gauge angles located at mid-height of the stud or at eight-foot maximum spacing, and within eight inches of the top and bottom. These angles are fastened to the masonry using two one-quarter-inch diameter concrete screws with two-and-a-half-inch minimum embedment and three number ten sheet metal screws to the stud. A continuous L2x2x16-gauge angle with number ten sheet metal screws ties each stud at the base, where a continuous sixteen-gauge break shape is secured with number ten sheet metal screws at sixteen inches on center to the angle and one-quarter-inch diameter concrete screws to the CMU.
16GA METAL STUD W/ 1 5/8" FLANGES W/ WIDTH PER ARCH @ 24" OC CONT 16GA BREAK SHAPEW/ 1/4"Ø HILTI KWIK HUS EZ OR SIMPSON TITEN HD W/ 2 1/2" MIN EMBED @ 16" OC TO TOP OF CMU & #10 SMS TO EA STUD CMU PER PLAN L3x3x0'-5 LONG"x14 GA @ MID-HEIGHT OF STUD OR 8'-0" OC MAX, WHICHEVER IS LESS, AND WITHIN 8" OF TOP AND BOTTOM. FASTEN TO CMU W/ (2) 1/4"Ø HILTI KWIK HUS EZ OR SIMPSON TITEN HD W/ 2 1/2" MIN EMBED AND (3) #10 SMS TO STUD. TYP EA STUD 1" TYP 3" TYP 1" TYP CONT L2x2x16GA W/ # 10 SMS TO EA STUD CONT 16GA BREAK SHAPE W/ # 10 SMS @ 16" OC TO ANGLE AND 1/4"Ø HILTI KWIK HUS EZ OR SIMPSON TITEN HD W/ 2 1/2" MIN EMBED TO CMU 2" 1" MIN LAP 2" MIN 4" MIN LAP 2"
