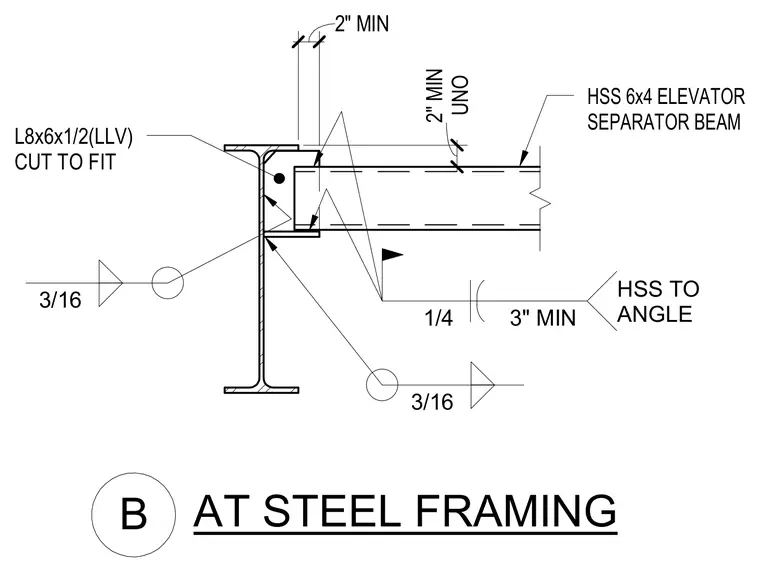

An HSS 6x4 elevator separator beam bears against a structural steel framing member using an L8x6x1/2 angle with long legs vertical cut to fit. The connection features a two-inch minimum clearance unless noted otherwise. The angle is welded to the supporting steel member with a three-sixteenths inch fillet weld. The HSS beam is secured to the angle with a quarter-inch fillet weld maintained at a three-inch minimum length.
HSS 6x4 ELEVATOR SEPARATOR BEAM AT STEEL FRAMING B L8x6x1/2(LLV) CUT TO FIT 2" MIN UNO 2" MIN 1/4 3" MIN HSS TO ANGLE 3/16 3/16
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
