Structural · S-3K776

Buckling-Restrained Braced Frame Beam-Column Connection Detail

Materials

Concrete Glass / Glazing Metal (misc.)

Elements

Roofs Decks Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection Deck Attachment

About this detail

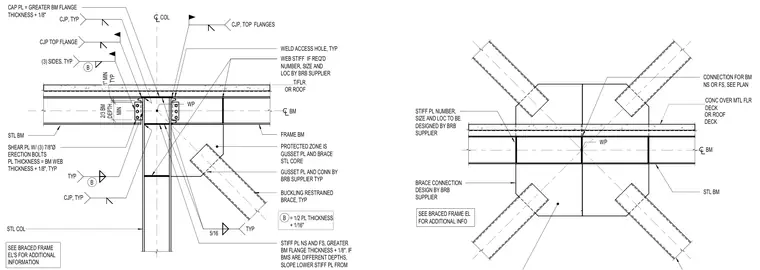

A buckling-restrained braced frame connection at a steel column and beam intersection, featuring a gusset plate and brace connection designed by the buckling-restrained brace supplier. The assembly includes a steel column supporting frame beams connected via shear plates with three seven-eighths inch diameter erection bolts and complete joint penetration welds at the top flanges. Stiffener plates near and far side are sized to the greater beam flange thickness plus one-eighth inch, with web stiffeners added as required. A concrete over metal floor deck sits at the top of the floor or roof level, and weld access holes are provided typically at beam intersections.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
