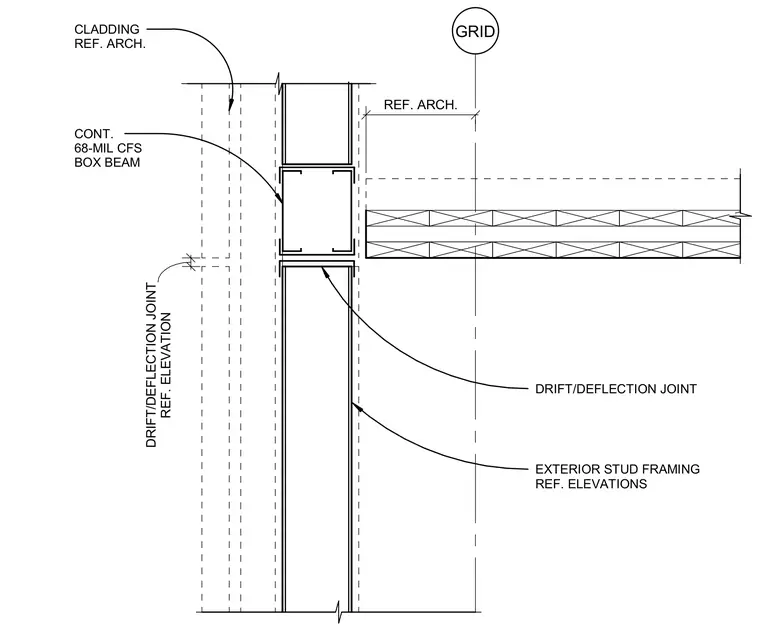

A continuous 68-mil cold-formed steel box beam supports exterior stud framing at a drift and deflection joint near the structural grid line. Architectural cladding is referenced on the exterior face, accommodating vertical movement across the joint. Exterior stud framing coordinates with architectural elevations for alignment.
GRID REF. ELEVATION DRIFT/DEFLECTION JOINT CLADDING REF. ARCH. CONT. 68-MIL CFS BOX BEAM EXTERIOR STUD FRAMING REF. ELEVATIONS DRIFT/DEFLECTION JOINT REF. ARCH.
