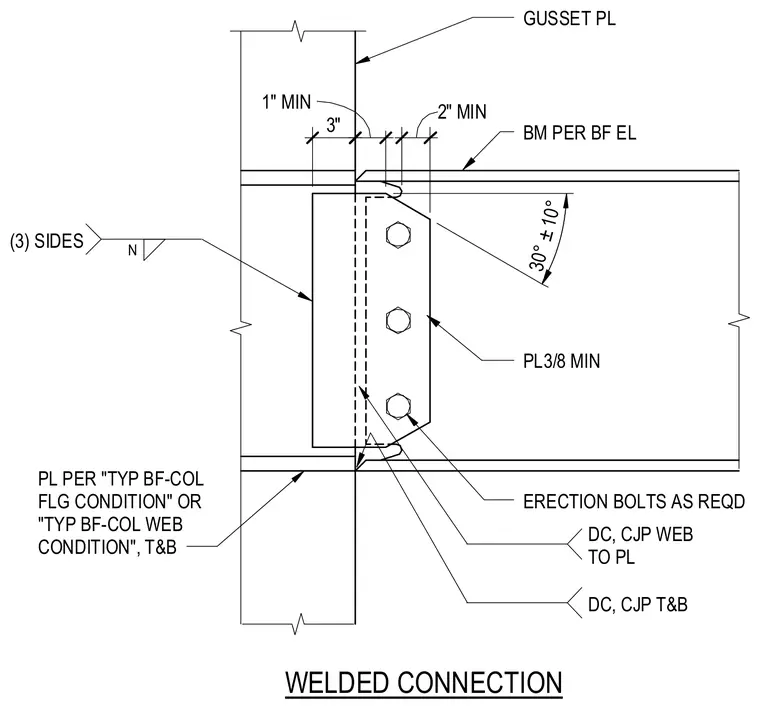

A structural steel beam frames into a column using a gusset plate welded to the member flanges and web. The beam web connects to the plate with complete joint penetration welds and three-eighths-inch minimum plate thickness. Erection bolts are provided as required during fit-up. The top and bottom flanges feature complete joint penetration welds with a thirty-degree bevel angle detail. Minimum clearances of one inch and two inches are maintained for proper weld access and fit-up.
BM PER BF EL DC, CJP WEB TO PL DC, CJP T&B GUSSET PL PL PER "TYP BF-COL FLG CONDITION" OR "TYP BF-COL WEB CONDITION", T&B (3) SIDES N PL3/8 MIN 3" ERECTION BOLTS AS REQD 1 " MIN 2" MIN 30° ± 10° 1" MIN WELDED CONNECTION
