Foundation Wall Detail At Veneer

Materials

Elements

Columns Walls Facades / Cladding Floors / Slabs Foundations / Footings Arches Anchors / Embeds Connections / Plates Reinforcing

Connections

Base Plate / Anchorage Rebar Splice / Development

About this detail

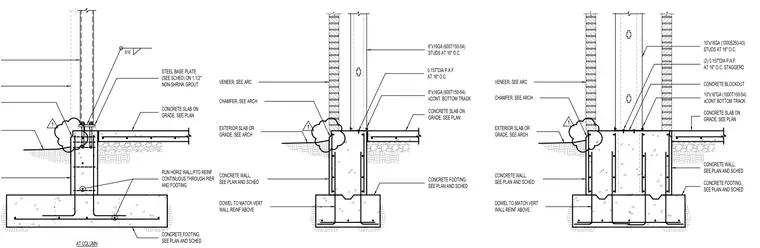

A concrete footing supports a concrete foundation wall with continuous horizontal reinforcement running through the pier and footing. Vertical wall dowels match the reinforcement above and tie into the footing. A concrete slab on grade abuts the wall assembly, with exterior grade conditions detailed per architectural drawings. Cold-formed steel studs of six-inch by sixteen-gauge and ten-inch by eighteen-gauge sizes connect to continuous bottom tracks using powder-actuated fasteners at sixteen inches on center. A steel base plate set on non-shrink grout secures the column at the exterior condition.
