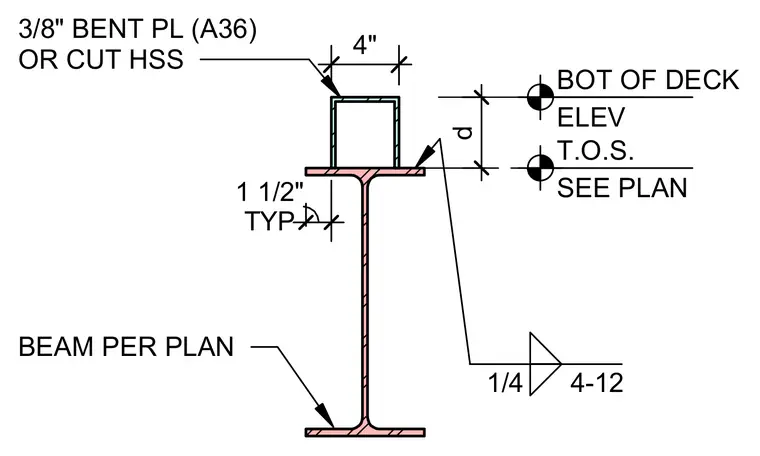

A filler beam constructed from a three-eighths-inch A36 bent plate or a cut hollow structural section bears on top of a structural steel wide-flange beam sized per plan. A four-inch dimension spans the filler element, which sits with typical one-and-one-half-inch clearances to the beam flange edge. The assembly aligns with the top of steel and bottom of deck elevations specified on the structural plans.
ELEV BOT OF DECK SEE PLAN T.O.S. 1/4 4-12 3/8" BENT PL (A36) OR CUT HSS BEAM PER PLAN d TYP 1 1/2" 4"
