Structural · S-3JK5D

Typical Drop-In Steel Beam Connection

Materials

Elements

Columns Beams Decks Connections / Plates

About this detail

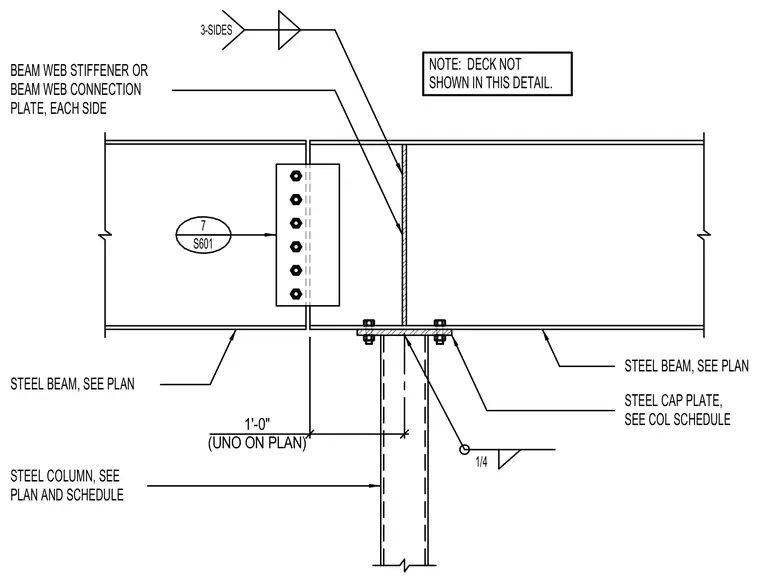

A drop-in steel beam frames into a supporting steel column with a steel cap plate sized per the column schedule, welded with a quarter-inch fillet weld. A steel beam web stiffener or beam web connection plate is provided on each side, welded on three sides. An incoming steel beam connects via a bolted shear tab or connection plate. A note indicates that the metal deck is omitted from this view.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
