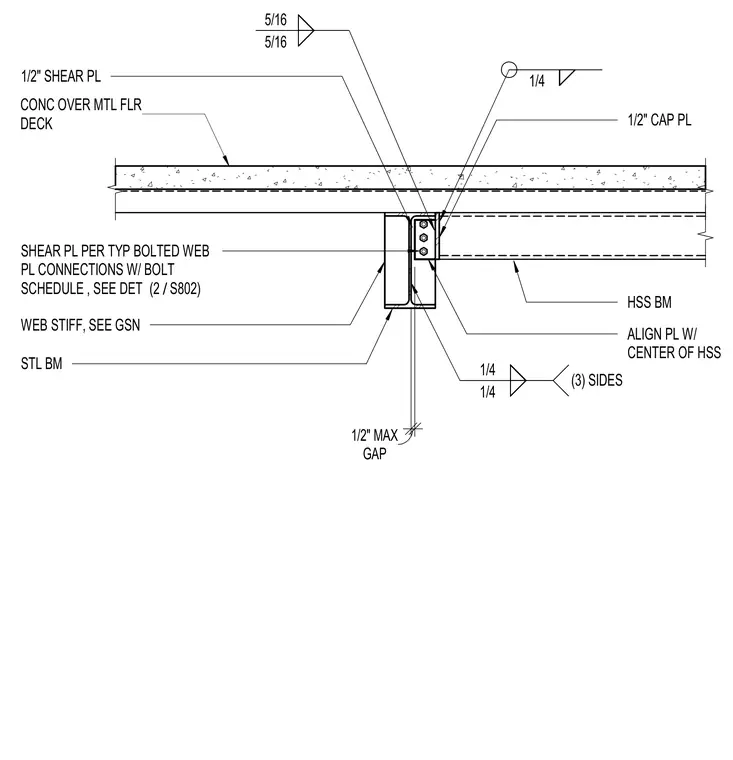

A hollow structural section beam frames into a supporting wide-flange steel beam beneath a concrete slab over a metal floor deck. A one-half-inch shear plate welded to the wide-flange steel beam web connects to the hollow structural section beam web using bolts sized per the bolt schedule. A one-half-inch cap plate is welded to the top of the hollow structural section beam with a quarter-inch weld on three sides and aligned with the center of the hollow structural section. Web stiffeners are provided on the supporting steel beam as detailed in general structural notes. A half-inch maximum gap is maintained between the framing members.
WEB STIFF, SEE GSN SHEAR PL PER TYP BOLTED WEB PL CONNECTIONS W/ BOLT SCHEDULE , SEE DET 1/2" SHEAR PL 1/2" CAP PL ALIGN PL W/ CENTER OF HSS CONC OVER MTL FLR DECK GAP 1/2" MAX 5/16 5/16 1/4 1/4 1/4 (3) SIDES HSS BM STL BM / (2 S802)
