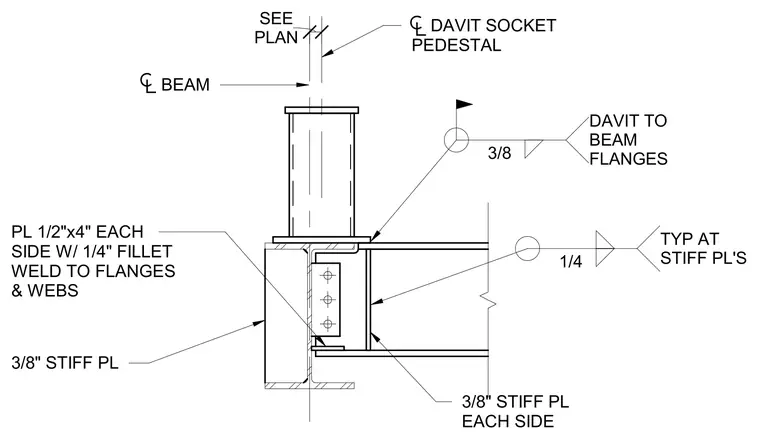

A structural steel davit socket pedestal mounts directly to a supporting steel beam with a three-eighths inch weld to the beam flanges. Three-eighths inch stiffener plates are welded to each side of the beam web and flanges using one-quarter inch fillet welds. Additional one-half by four inch plates are attached to each side with one-quarter inch fillet welds to stiffen the connection for high concentrated loads. The davit socket pedestal center line aligns with the beam center line as sized per plan.
3/8" STIFF PL PL 1/2"x4" EACH SIDE W/ 1/4" FILLET WELD TO FLANGES & WEBS BEAM 3/8" STIFF PL EACH SIDE DAVIT SOCKET PEDESTAL PLAN SEE 3/8 DAVIT TO BEAM FLANGES 1/4 TYP AT STIFF PL'S
