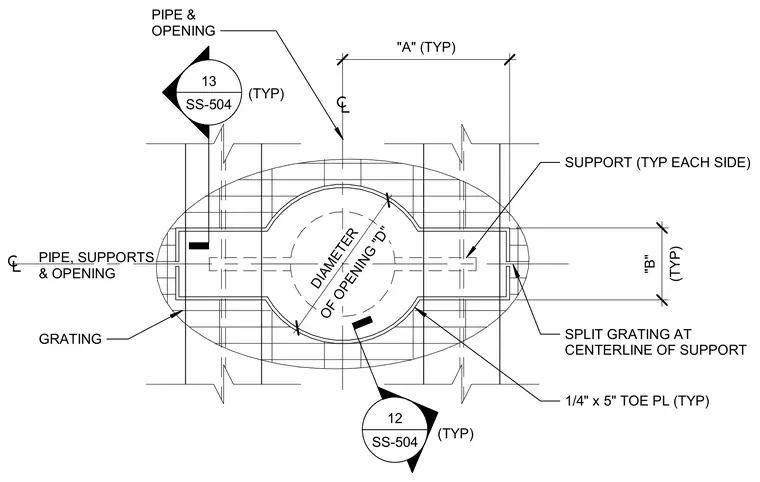

Metal grating is split at the centerline of the support and detailed with typical supports on each side of the opening. A one-quarter inch by five-inch toe plate runs typical around the pipe penetration perimeter. The assembly accommodates a pipe opening of diameter 'D' with designated dimensions 'A' and 'B'.
"A" (TYP) SUPPORT (TYP EACH SIDE) SPLIT GRATING AT CENTERLINE OF SUPPORT (TYP) "B" 1/4" x 5" TOE PL (TYP) PIPE, SUPPORTS & OPENING PIPE & OPENING GRATING OF OPENING "D" DIAMETER 12 SS-504 13 SS-504 (TYP) (TYP)
