Metal deck bearing connections on structural steel beams for various roof conditions including perpendicular spans, alternate connections, and ridge or hip beam junctions. A continuous bent plate or continuous bar with a diameter of one-quarter to three-eighths inches is utilized depending on the roof slope relative to the roof beam. Fillet welds of three-sixteenths inch are specified at typical locations, with staggered spacing of one and one-half inches by twelve inches. A specific note directs the use of a bent plate when the deck slope relative to the roof beam reaches one-half inch to twelve inches and greater.

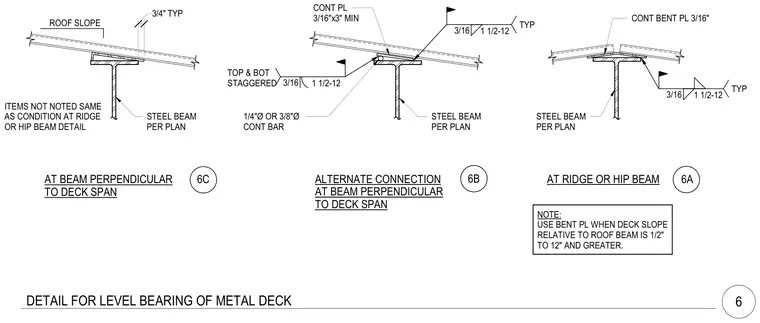

CONT BENT PL 3/16" NOTE: USE BENT PL WHEN DECK SLOPE RELATIVE TO ROOF BEAM IS 1/2" TO 12" AND GREATER. ROOF SLOPE STEEL BEAM PER PLAN ITEMS NOT NOTED SAME AS CONDITION AT RIDGE OR HIP BEAM DETAIL AT RIDGE OR HIP BEAM AT BEAM PERPENDICULAR TO DECK SPAN 3/16 TYP 3/4" TYP STEEL BEAM PER PLAN ALTERNATE CONNECTION AT BEAM PERPENDICULAR TO DECK SPAN STEEL BEAM PER PLAN 3/16 3/16 TYP 1 1/2-12 1 1/2-12 TOP & BOT STAGGERED 1/4"Ø OR 3/8"Ø CONT BAR CONT PL 3/16"x3" MIN 6A 6B 6C 1 1/2-12 DETAIL FOR LEVEL BEARING OF METAL DECK 6
