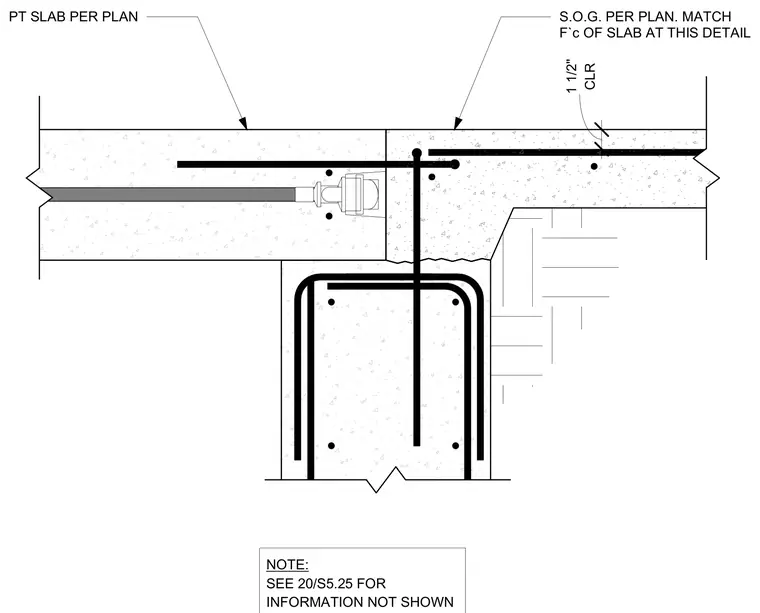

A post-tensioned slab transitions to a slab-on-grade bearing on a concrete grade beam with reinforced steel detailing. The post-tensioned slab features embedded tendon anchorage hardware per plan adjacent to the slab-on-grade interface. The concrete compressive strength of the slab-on-grade matches the main slab at this detail with a specified clearance of one and one-half inches. Additional reinforcing steel dowels extend from the grade beam into the slab assembly.
PT SLAB PER PLAN S.O.G. PER PLAN. MATCH F`c OF SLAB AT THIS DETAIL CLR 1 1/2" NOTE: SEE 20/S5.25 FOR INFORMATION NOT SHOWN
