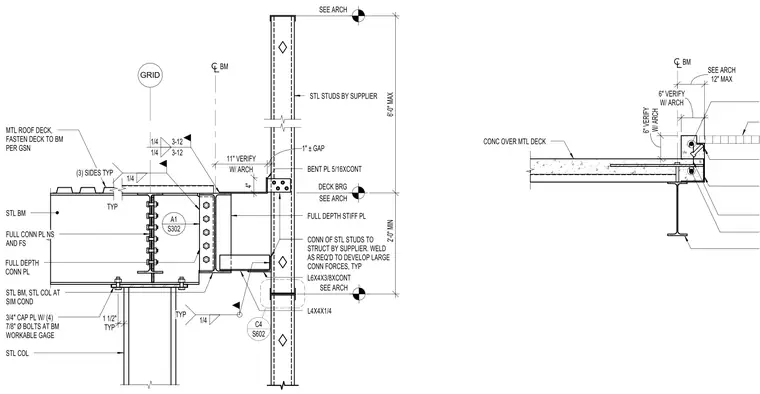

A steel cantilever beam frames into a structural steel column utilizing a full-depth connection plate welded near side and far side with quarter-inch fillet welds. A three-quarter-inch cap plate with four seven-eighth-inch diameter bolts secures the steel beam to the supporting steel column below at workable gage. A continuous bent plate and an L6x4x3/8 angle connect steel studs to the structure with welded attachments to develop large connection forces. A metal roof deck fastens to the steel beam per general structural notes with quarter-inch welds on three sides typical.
4" S302 A1 BM GRID W/ ARCH 11" VERIFY 1" ± GAP SEE ARCH SEE ARCH DECK BRG SEE ARCH 2'-0" MIN 6'-0" MAX FULL CONN PL NS AND FS MTL ROOF DECK, FASTEN DECK TO BM PER GSN L6X4X3/8XCONT CONN OF STL STUDS TO STRUCT BY SUPPLIER. WELD AS REQ'D TO DEVELOP LARGE CONN FORCES, TYP BENT PL 5/16XCONT STL STUDS BY SUPPLIER 1/4 1/4 3-12 3-12 TYP 1/4 TYP STL BM, STL COL AT SIM COND STL BM L4X4X1/4 S602 C4 FULL DEPTH STIFF PL FULL DEPTH CONN PL (3) SIDES TYP 1/4 TYP 1 1/2" STL COL 3/4" CAP PL W/ (4) 7/8" Ø BOLTS AT BM WORKABLE GAGE W/ ARCH 6" VERIFY W/ ARCH 6" VERIFY BM 12" MAX SEE ARCH CONC OVER MTL DECK
