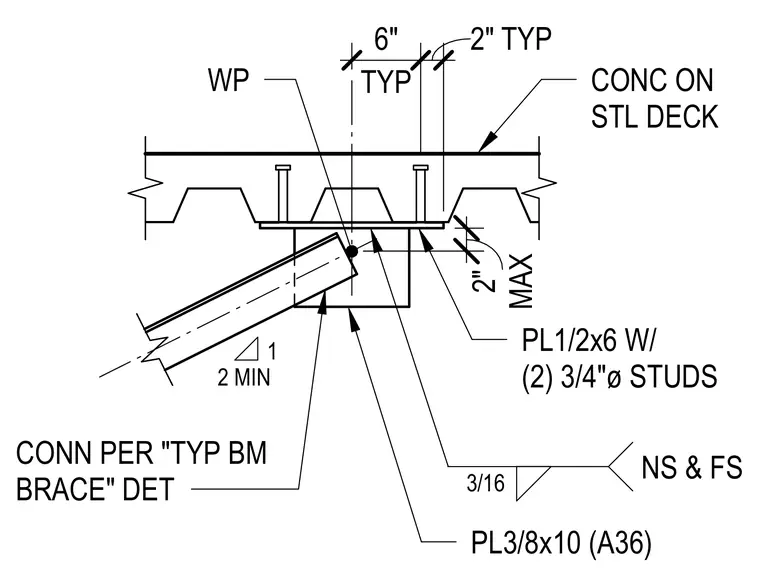

A structural brace connects perpendicularly to a concrete-filled steel deck using a 3/8-inch thick A36 gusset plate. The gusset plate welds to a 1/2-inch by 6-inch plate anchored by two 3/4-inch diameter studs embedded into the concrete deck. A three-sixteenths inch fillet weld secures the brace to the gusset plate on both the near side and far side. Connection details follow the typical beam brace standard.
NS & FS 3/16 WP CONC ON STL DECK PL1/2x6 W/ (2) 3/4"ø STUDS MAX 2" 2 MIN 1 PL3/8x10 (A36) TYP 6" 2" TYP CONN PER "TYP BM BRACE" DET
