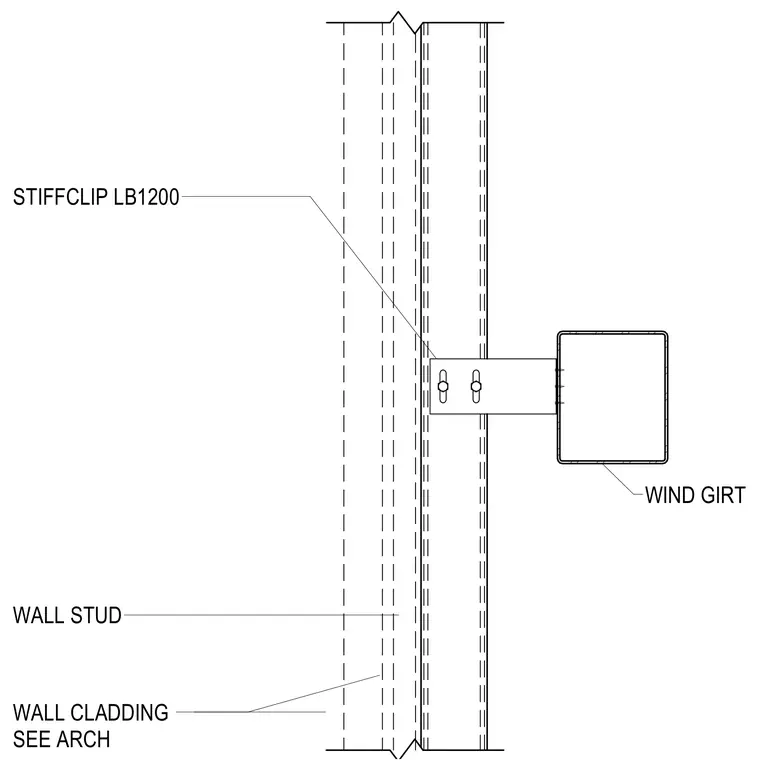

A hollow structural section wind girt connects to a vertical wall stud using a Stiffclip LB1200 deflection clip. The clip allows for vertical movement while transferring lateral wind loads from the girt to the stud wall. Wall cladding is specified per the architectural drawings.
