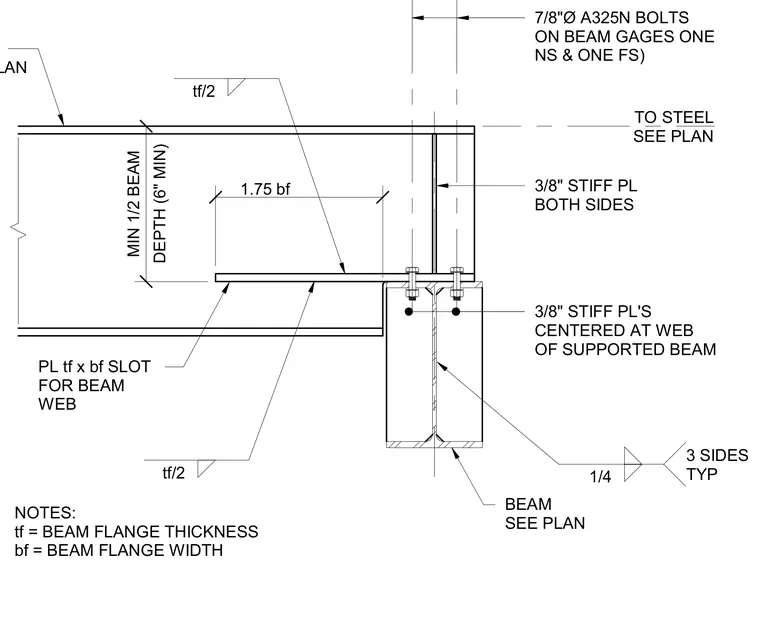

A supported steel beam is notched at its end to frame into a supporting steel beam, with the bottom flange of the supported beam resting on a seat. The supported beam web passes through a slotted plate matching the beam flange thickness and width. Three-eighths-inch stiffener plates are provided on both sides and centered at the web of the supported beam. Seven-eighths-inch diameter A325N bolts secure the connection on beam gauges, with one near-side and one far-side bolt. Fillet welds of one-quarter-inch size are applied on three sides typically.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN SEE PLAN 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
