Structural · S-3HAT2

Typical Haunched Steel Beam Connection and Profile Details

Materials

Elements

About this detail

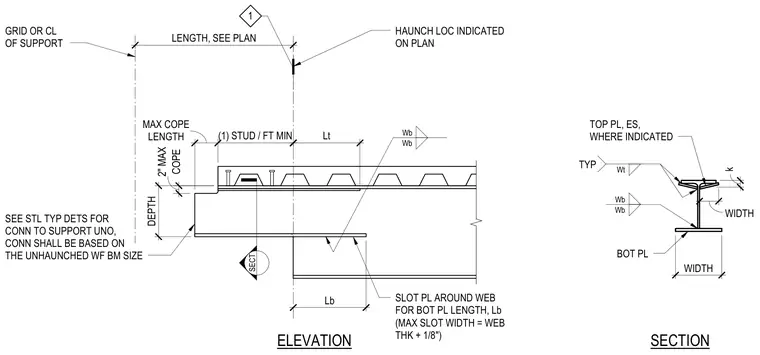

A structural steel wide-flange beam features a haunched profile at its support with a top plate on each side where indicated and a bottom plate slotted around the web. The connection to the support references standard structural steel details unless otherwise noted, based on the unhaunched wide-flange beam size. A maximum cope length and depth of two inches apply at the beam end adjacent to the grid or centerline of support. Shear studs are specified at a minimum density of one stud per foot along the top flange.
