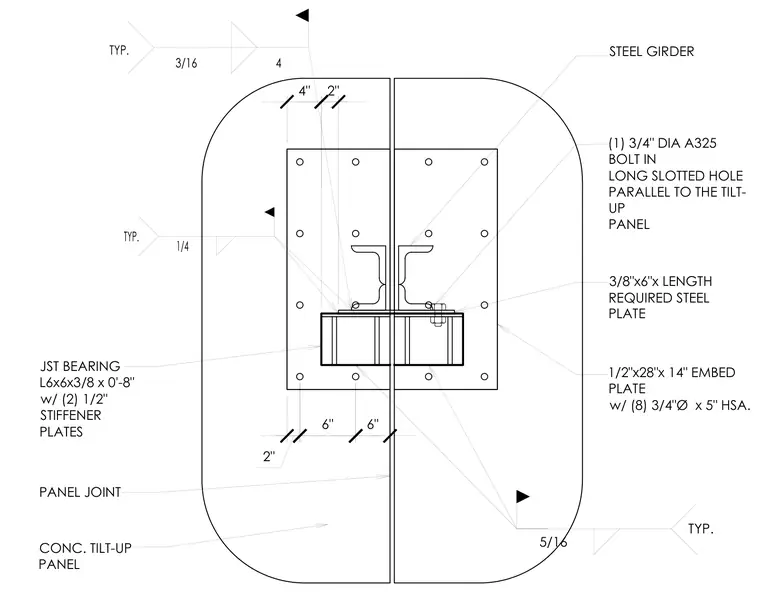

A steel girder bears onto a joist bearing angle consisting of an L6x6x3/8 measuring zero feet eight inches long with two half-inch stiffener plates welded with typical quarter-inch fillet welds. This assembly sits atop a half-inch by 28-inch by 14-inch embed plate anchored into the concrete tilt-up panel with eight three-quarter-inch diameter by five-inch head stud anchors. A three-eighths-inch by six-inch steel plate of required length is connected using a three-quarter-inch diameter A325 bolt placed in a long slotted hole parallel to the tilt-up panel, allowing for movement at the panel joint. Five-sixteenths and three-sixteenths fillet welds secure the plates and structural components together.
(1) 3/4" DIA A325 BOLT IN LONG SLOTTED HOLE PARALLEL TO THE TILT- UP PANEL CONC. TILT-UP PANEL JST BEARING L6x6x3/8 x 0'-8" w/ (2) 1/2" STIFFENER PLATES PANEL JOINT 1/2"x28"x 14" EMBED PLATE w/ (8) 3/4"Ø x 5" HSA. 3/8"x6"x LENGTH REQUIRED STEEL PLATE TYP. 5/16 TYP. 3/16 4 STEEL GIRDER 6" 2" 6" TYP. 1/4 4" 2"
