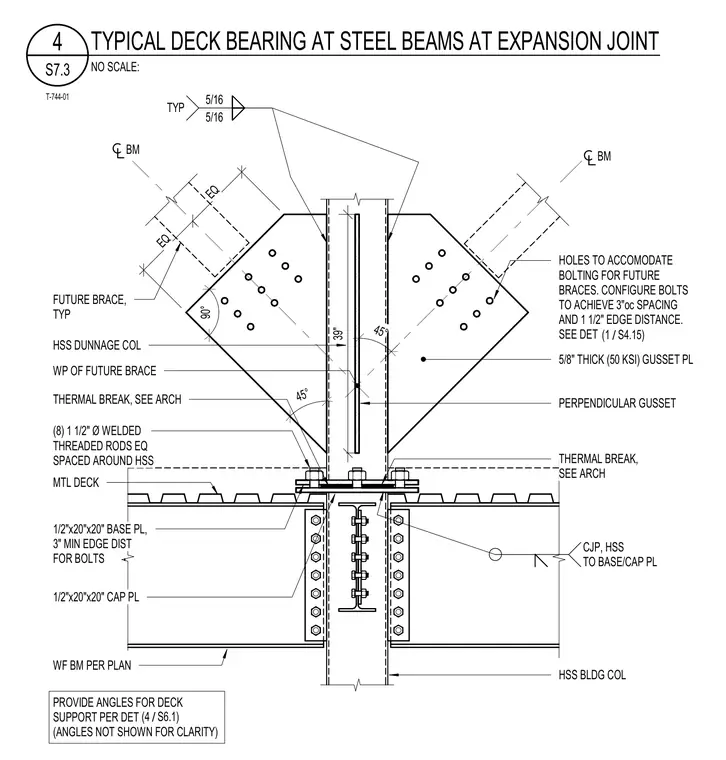

A structural connection joins an HSS building column and steel wide-flange beams at an expansion joint with a metal deck bearing. A 5/8-inch thick fifty ksi gusset plate is welded to the HSS dunnage column with five-sixteenths inch fillet welds and features pre-drilled holes for future bracing. The HSS column anchors to a one-half inch by twenty-inch by twenty-inch base plate fastened with eight one-and-one-half inch diameter welded threaded rods equally spaced around the HSS, connecting to a matching cap plate over the structural steel framing. Complete joint penetration welds secure the HSS to the base and cap plates, while angles provide additional deck support per plan.
HOLES TO ACCOMODATE BOLTING FOR FUTURE BRACES. CONFIGURE BOLTS TO ACHIEVE 3"oc SPACING AND 1 1/2" EDGE DISTANCE. SEE DET 5/8" THICK (50 KSI) GUSSET PL HSS DUNNAGE COL 5/16 5/16 TYP 39" EQ EQ THERMAL BREAK, SEE ARCH MTL DECK WP OF FUTURE BRACE 1/2"x20"x20" BASE PL, 3" MIN EDGE DIST FOR BOLTS (8) 1 1/2" Ø WELDED THREADED RODS EQ SPACED AROUND HSS CJP, HSS TO BASE/CAP PL 1/2"x20"x20" CAP PL BM BM PERPENDICULAR GUSSET 90° 45° 45° HSS BLDG COL FUTURE BRACE, TYP THERMAL BREAK, SEE ARCH / (1 S4.15) WF BM PER PLAN PROVIDE ANGLES FOR DECK SUPPORT PER DET (ANGLES NOT SHOWN FOR CLARITY) / (4 S6.1) NO SCALE: S7.3 4 TYPICAL DECK BEARING AT STEEL BEAMS AT EXPANSION JOINT T-744-01
