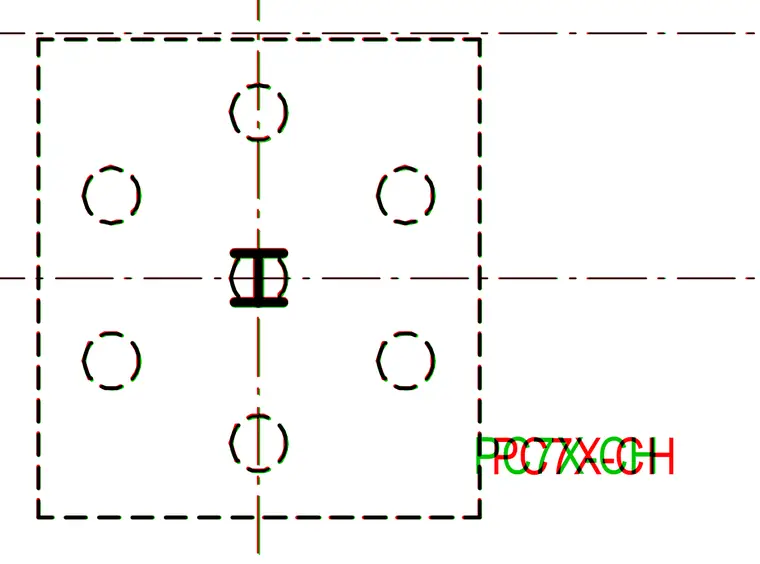

A structural steel column base plate assembly features a central column section centered on intersecting column lines, secured by a symmetric arrangement of six anchor bolts set within a rectangular dashed footprint. The layout establishes precise centerlines and bolt circle coordinates for structural foundation anchorage.
