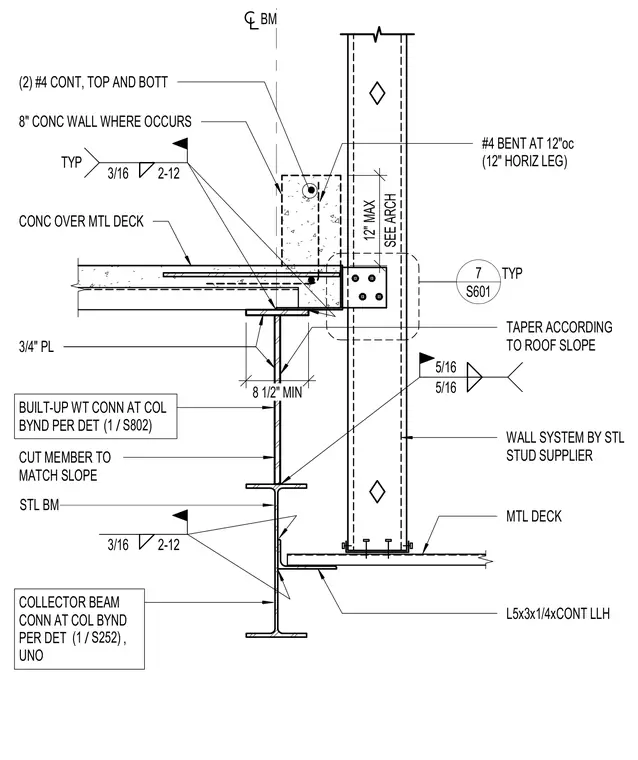

A structural steel beam supports a concrete over metal deck floor system at the penthouse roof edge, framing into a column with a three-quarter-inch plate. A continuous angle supports the metal deck below, while a tapered member matches the roof slope. An eight-inch concrete wall sits above with continuous top and bottom reinforcing bars and bent bars spaced twelve inches on center. Welds are specified throughout, including three-sixteenth-inch and five-sixteenth-inch fillet welds with specific intermittent spacing.
BM 3/16 2-12 TYP S601 7 TYP 3/16 2-12 MTL DECK WALL SYSTEM BY STL STUD SUPPLIER STL BM 5/16 5/16 3/4" PL CUT MEMBER TO MATCH SLOPE TAPER ACCORDING TO ROOF SLOPE CONC OVER MTL DECK 8 1/2" MIN COLLECTOR BEAM CONN AT COL BYND PER DET , UNO / (1 S252) L5x3x1/4xCONT LLH BUILT-UP WT CONN AT COL BYND PER DET / (1 S802) 8" CONC WALL WHERE OCCURS (2) #4 CONT, TOP AND BOTT #4 BENT AT 12"oc (12" HORIZ LEG) SEE ARCH 12" MAX
