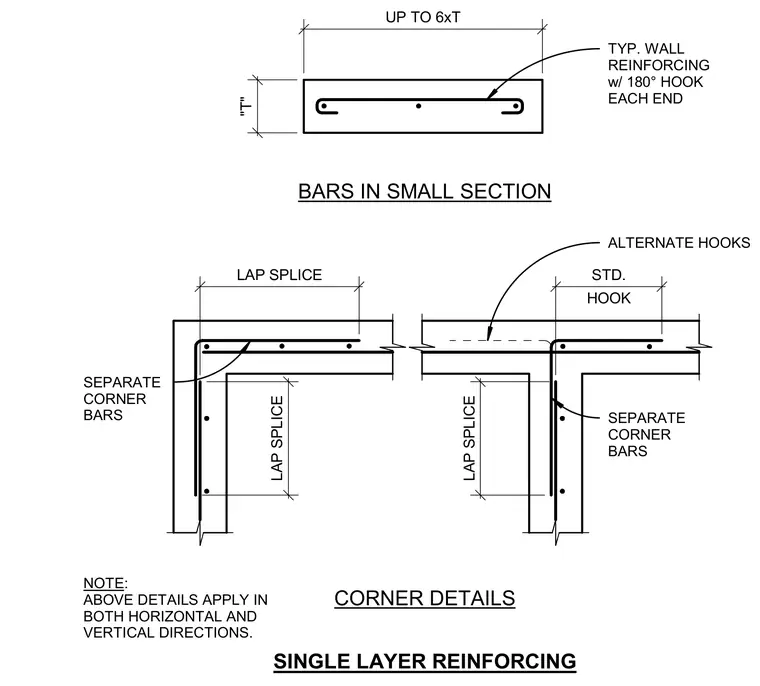

Typical wall reinforcing utilizes single layer reinforcement with 180-degree hooks at each end in small section configurations up to six times thickness. Corner details incorporate separate corner bars with standard laps and alternate hooks. These lap splice and corner bar configurations apply in both horizontal and vertical wall reinforcing directions.
ALTERNATE HOOKS TYP. WALL REINFORCING w/ 180° HOOK EACH END BARS IN SMALL SECTION CORNER DETAILS UP TO 6xT HOOK STD. LAP SPLICE SEPARATE CORNER BARS NOTE: ABOVE DETAILS APPLY IN BOTH HORIZONTAL AND VERTICAL DIRECTIONS. SEPARATE CORNER BARS SINGLE LAYER REINFORCING "T" LAP SPLICE LAP SPLICE
