The slab on grade construction joint requires a saw cut extending to one-fifth the depth of the slab with a maximum depth of two inches. Reinforcement must continue uninterrupted across the construction joint because the concrete slab functions as a structural diaphragm. Through cutting or trenching the joint is strictly prohibited. The contractor must submit a slab on grade construction joint plan for the engineer's review prior to pouring concrete.

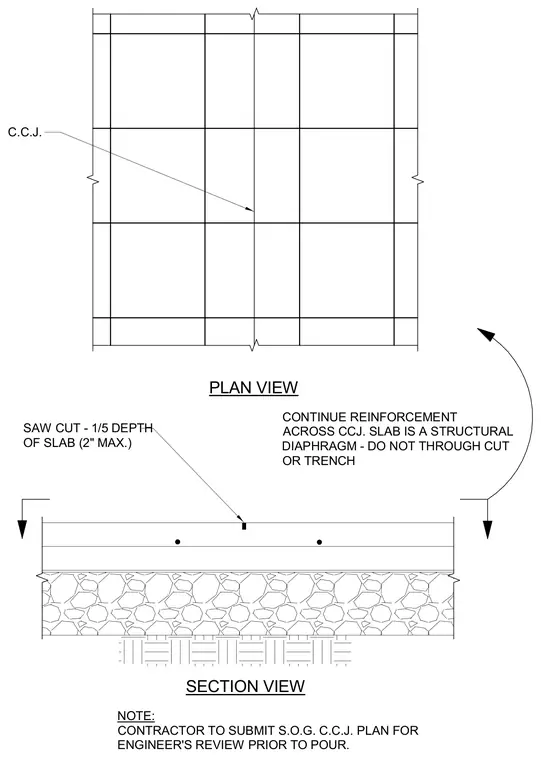

SAW CUT - 1/5 DEPTH OF SLAB (2" MAX.) CONTINUE REINFORCEMENT ACROSS CCJ. SLAB IS A STRUCTURAL DIAPHRAGM - DO NOT THROUGH CUT OR TRENCH C.C.J. SECTION VIEW PLAN VIEW NOTE: CONTRACTOR TO SUBMIT S.O.G. C.C.J. PLAN FOR ENGINEER'S REVIEW PRIOR TO POUR.
