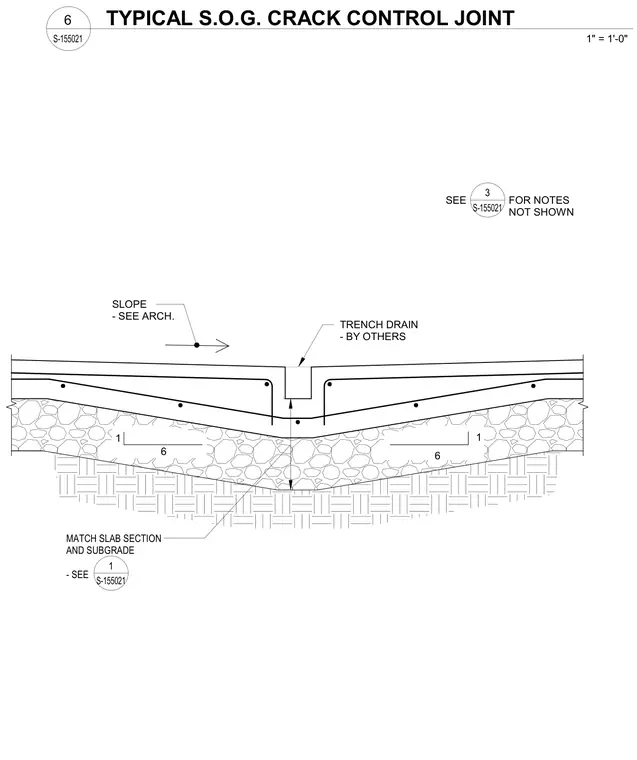

A typical slab on grade crack control joint integrates a trench drain supplied by others. The concrete slab features sloped surfaces directed toward the trench drain, supported by a prepared subgrade and granular base course. Reinforcing steel is placed within the slab thickening at the drain location, matching the adjacent slab section and subgrade conditions. Additional notes and specifications are cross-referenced to related structural drawings.
1 6 1 6 TRENCH DRAIN - BY OTHERS SLOPE - SEE ARCH. MATCH SLAB SECTION AND SUBGRADE - SEE 1 S-155021 SEE FOR NOTES NOT SHOWN 3 S-155021 S-155021 1" = 1'-0" 6 TYPICAL S.O.G. CRACK CONTROL JOINT
