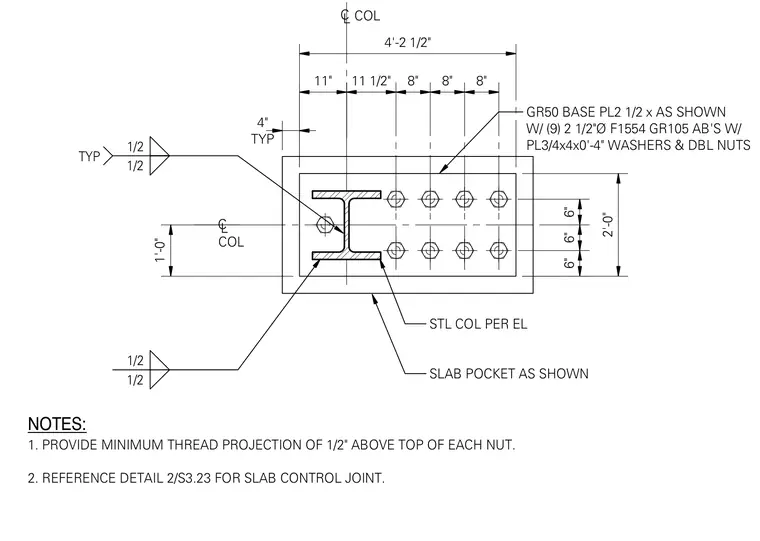

A structural steel column connects to a Grade 50 base plate measuring 2-1/2 inches thick, secured with nine 2-1/2-inch-diameter ASTM F1554 Grade 105 anchor bolts equipped with 3/4-inch by 4-inch by 4-inch washers and double nuts. The base plate rests within a slab pocket as shown on the elevation, and features 1/2-inch welds as indicated. A minimum thread projection of 1/2 inch is required above the top of each nut. Slab control joints adjacent to the assembly reference detail 2/S3.23.
NOTES: 1. PROVIDE MINIMUM THREAD PROJECTION OF 1/2" ABOVE TOP OF EACH NUT. 2. REFERENCE DETAIL 2/S3.23 FOR SLAB CONTROL JOINT. GR50 BASE PL2 1/2 x AS SHOWN W/ (9) 2 1/2"Ø F1554 GR105 AB'S W/ PL3/4x4x0'-4" WASHERS & DBL NUTS 1/2 1/2 1/2 1/2 TYP STL COL PER EL SLAB POCKET AS SHOWN COL C L 2'-0" TYP 4" 11" 11 1/2" 8" 8" 8" 4'-2 1/2" COL C L 1'-0" 6" 6" 6"
