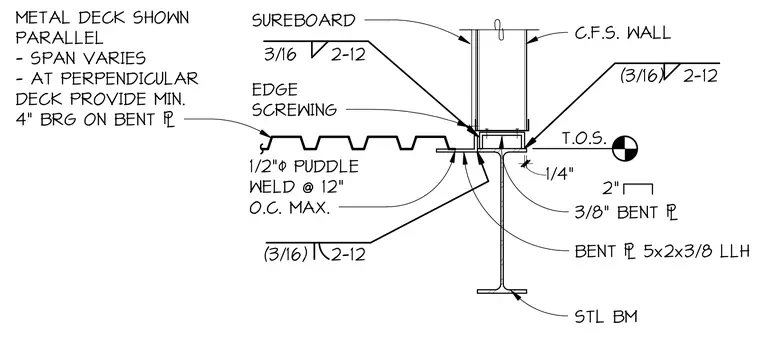

A cold-formed steel wall with SureBoard sheathing bears directly on a 3/8-inch bent plate attached to a structural steel beam. The metal deck fastens to the support assembly with 1/2-inch diameter puddle welds at 12 inches on center maximum. A 5x2x3/8 long leg horizontal bent plate ties the cold-formed steel framing to the structural beam using 3/16-inch fillet welds spaced at 2 inches to 12 inches. The assembly accommodates parallel metal deck spans requiring a minimum 4-inch bearing on the bent plate.
STL BM T.O.S. 3/16 2-12 (3/16) 2-12 1/4" 3/8" BENT ( EDGE SCREWING SUREBOARD 1/2"- PUDDLE WELD @ 12" O.C. MAX. METAL DECK SHOWN PARALLEL - SPAN VARIES - AT PERPENDICULAR DECK PROVIDE MIN. 4" BRG ON BENT ( (3/16) 2-12 BENT ( 5x2x3/8 LLH C.F.S. WALL 2"
