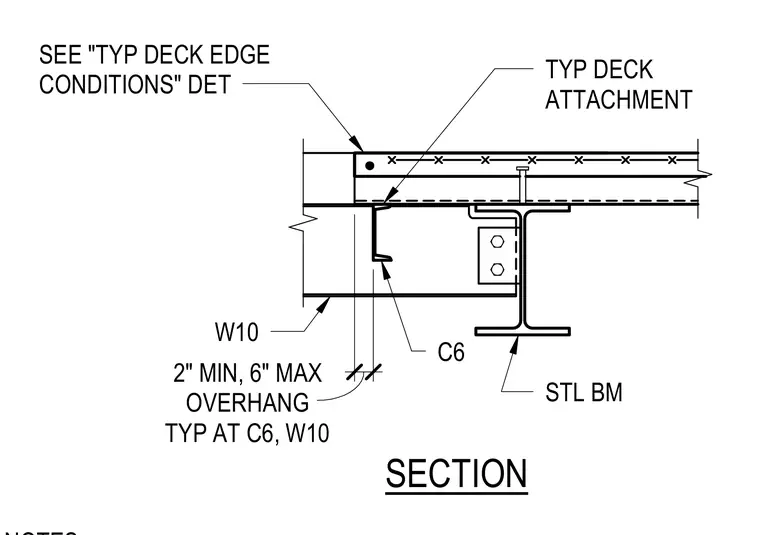

A metal deck bears over a W10 steel beam and a C6 channel edge member. The C6 channel maintains a two-inch minimum to six-inch maximum overhang from the supporting steel framing. Typical deck attachment secures the metal deck to the underlying steel supports. A shear tab connection frames into the W10 steel beam.
W10 C6 SEE "TYP DECK EDGE CONDITIONS" DET 2" SECTION TYP DECK ATTACHMENT 2" MIN, 6" MAX OVERHANG TYP AT C6, W10 STL BM
