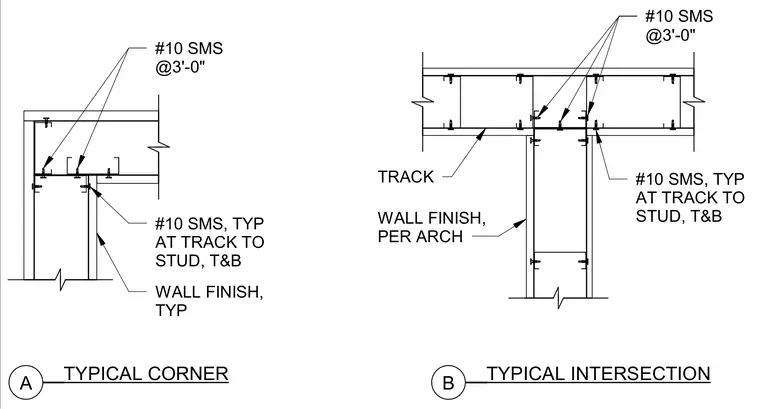

Metal stud wall corners and T-intersections are constructed using top and bottom tracks secured with number ten sheet metal screws spaced at three feet on center. Wall finishes are applied per architectural specifications on both sides of the framing. Additional fasteners attach the track to studs at the top and bottom of the wall assemblies.
#10 SMS, TYP AT TRACK TO STUD, T&B TRACK WALL FINISH, PER ARCH #10 SMS @3'-0" #10 SMS, TYP AT TRACK TO STUD, T&B WALL FINISH, TYP __ __ A TYPICAL CORNER __ __ B TYPICAL INTERSECTION #10 SMS @3'-0"
