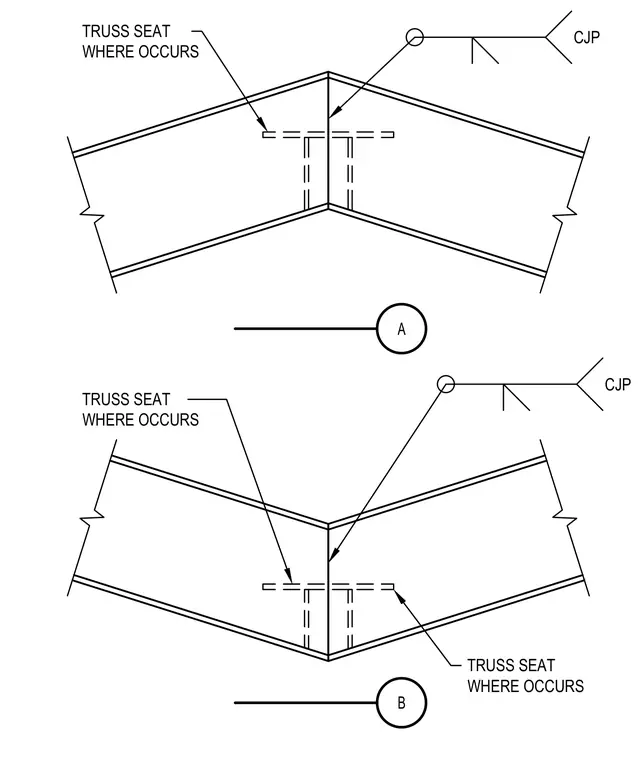

The steel roof truss members meet at the ridge with a truss seat located where required by the framing layout. The apex joint is secured using a complete joint penetration weld indicated at the intersection.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
