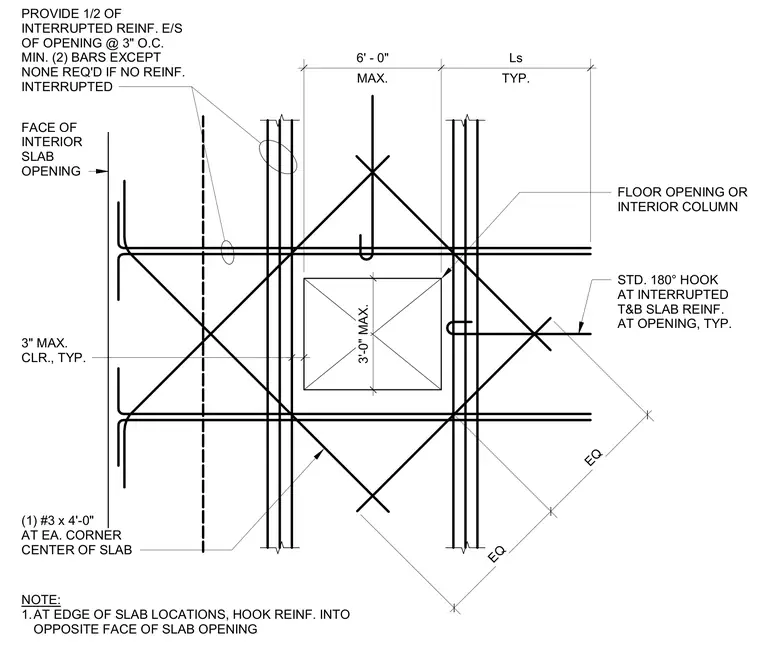

At edge of slab locations, hook reinforcement into the opposite face of the slab opening with a standard 180-degree hook at interrupted top and bottom slab reinforcement. Provide one-half of the interrupted reinforcement on each side of the opening at 3 inches on center minimum with two bars, except none are required if no reinforcement is interrupted at the interior slab opening face. Each corner of the slab receives one #3 bar measuring 4 feet zero inches in length centered in the slab. Maximum floor opening or interior column size is 3 feet zero inches with a maximum span dimension of 6 feet zero inches and 3 inches maximum clear spacing typically.
NOTE: 1.AT EDGE OF SLAB LOCATIONS, HOOK REINF. INTO OPPOSITE FACE OF SLAB OPENING STD. 180° HOOK AT INTERRUPTED T&B SLAB REINF. AT OPENING, TYP. PROVIDE 1/2 OF INTERRUPTED REINF. E/S OF OPENING @ 3" O.C. MIN. (2) BARS EXCEPT NONE REQ'D IF NO REINF. INTERRUPTED FACE OF INTERIOR SLAB OPENING (1) #3 x 4'-0" AT EA. CORNER CENTER OF SLAB EQ EQ MAX. 6' - 0" TYP. Ls 3" MAX. CLR., TYP. 3'-0" MAX. FLOOR OPENING OR INTERIOR COLUMN
