Base Cabinet Sink Counter and Removable Panel Detail

Materials

Elements

Walls Floors / Slabs Millwork / Casework

About this detail

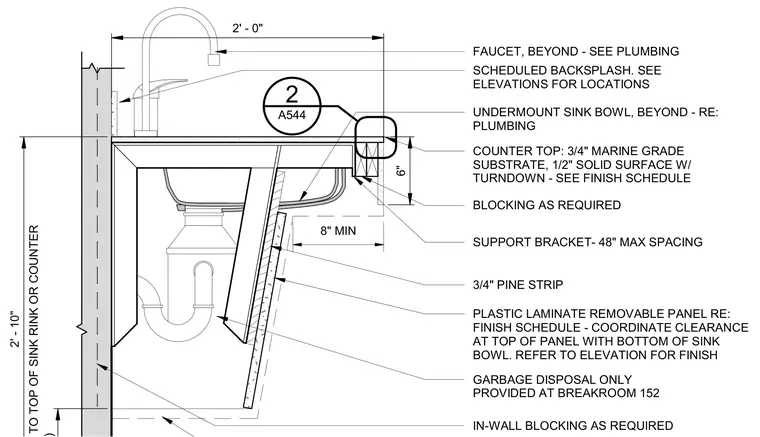

This interior millwork detail shows a base cabinet assembly featuring a three-quarter-inch marine grade substrate countertop with a one-half-inch solid surface and turndown, supported by brackets spaced at a maximum of forty-eight inches. An undermount sink bowl with a garbage disposal connects to plumbing beyond, with vertical clearance coordinated between the top of the removable plastic laminate panel and the bottom of the sink bowl. In-wall blocking is provided as required to anchor the support brackets and framing. A three-quarter-inch pine strip provides backing, and a removable plastic laminate panel matches the finish schedule.
