A rectangular concrete column measuring 24 inches by 28 inches is reinforced with longitudinal steel bars placed symmetrically around the perimeter. Internal ties with alternating hooks provide confinement and shear reinforcement. A typical concrete clearance of 1 1/2 inches is maintained from the face of the column to the ties. The column is centered along a structural grid line.

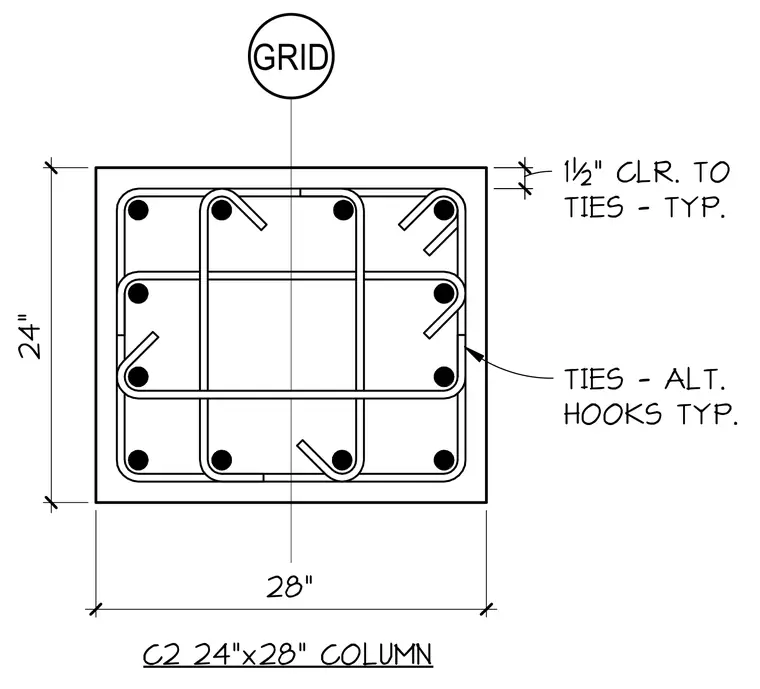

C2 24"x28" COLUMN 1½" CLR. TO TIES - TYP. GRID 24" 28" 1 1/2" TIES - ALT. HOOKS TYP.
