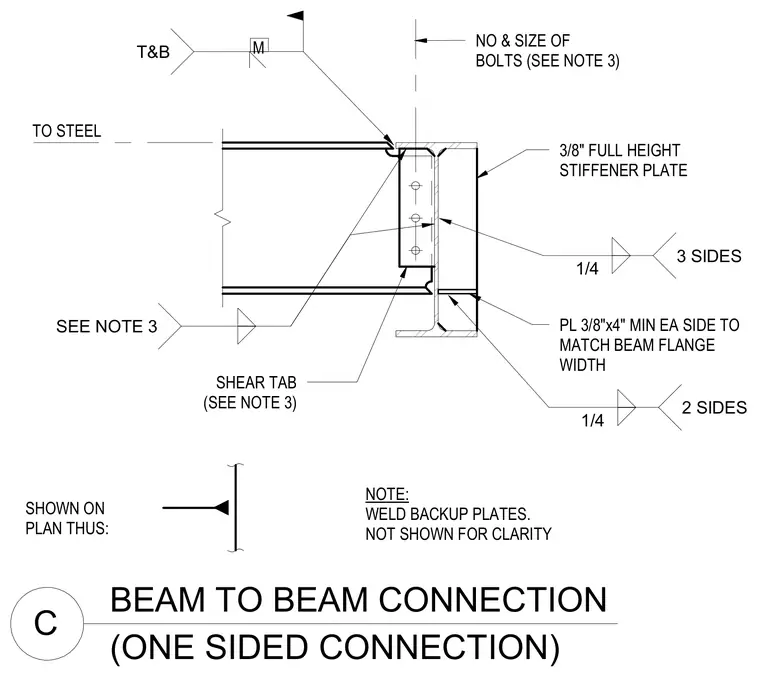

A framing beam connects to the web of a supporting steel beam using a single-plate shear tab bolted with a quantity and size determined per plan. A three-eighths-inch full-height stiffener plate is welded to the supporting beam web with a one-quarter-inch fillet weld on three sides. Additional three-eighths-inch by four-inch minimum plates match the beam flange width at the top and bottom, secured with one-quarter-inch fillet welds on two sides. Weld backup plates are welded to the steel assembly but omitted from the graphic for clarity.
BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
