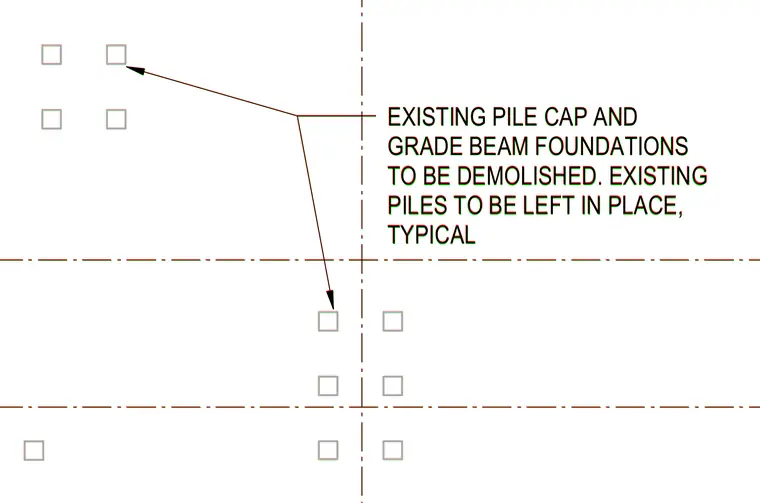

Existing pile cap and grade beam foundations are designated to be demolished while existing piles are left in place typically throughout the substructure.
EXISTING PILE CAP AND GRADE BEAM FOUNDATIONS TO BE DEMOLISHED. EXISTING PILES TO BE LEFT IN PLACE, TYPICAL EXISTING PILE CAP AND GRADE BEAM FOUNDATIONS TO BE DEMOLISHED. EXISTING PILES TO BE LEFT IN PLACE, TYPICAL
