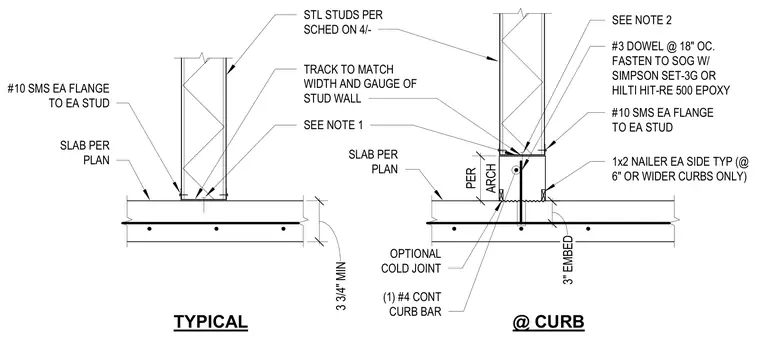

Cold-formed steel studs anchor to a bottom track matching the width and gauge of the wall framing, fastened with number ten sheet metal screws at each flange to each stud. The track bears on a concrete slab-on-grade or a raised curb with an optional cold joint. The curb configuration includes a continuous number four rebar curb bar and number three dowels at eighteen inches on center, fastened to the slab-on-grade with Simpson Set-3G or Hilti HIT-RE 500 epoxy with a three-inch embedment. One-by-two nailers are placed on each side typically for six-inch or wider curbs only.
SEE NOTE 2 1x2 NAILER EA SIDE TYP (@ 6" OR WIDER CURBS ONLY) SEE NOTE 1 TRACK TO MATCH WIDTH AND GAUGE OF STUD WALL STL STUDS PER SCHED ON 4/- SLAB PER PLAN (1) #4 CONT CURB BAR SLAB PER PLAN 3 3/4" MIN TYPICAL @ CURB ARCH PER 3" EMBED #3 DOWEL @ 18" OC. FASTEN TO SOG W/ SIMPSON SET-3G OR HILTI HIT-RE 500 EPOXY OPTIONAL COLD JOINT #10 SMS EA FLANGE TO EA STUD #10 SMS EA FLANGE TO EA STUD
