S-3F6WB — Sloped CLT Roof Bearing and Strap Connection at Glulam Beam

Structural · S-3F6WB

Sloped CLT Roof Bearing and Strap Connection at Glulam Beam

Materials

About this detail

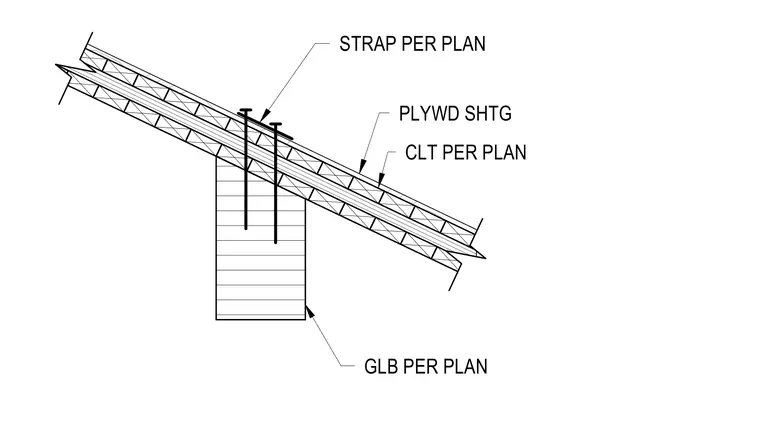

A cross-laminated timber roof assembly bears upon a glulam beam specified per plan, topped with plywood sheathing. A structural strap specified per plan anchors the assembly with mechanical fasteners extending down into the supporting construction.

STRAP PER PLAN PLYWD SHTG CLT PER PLAN GLB PER PLAN

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
