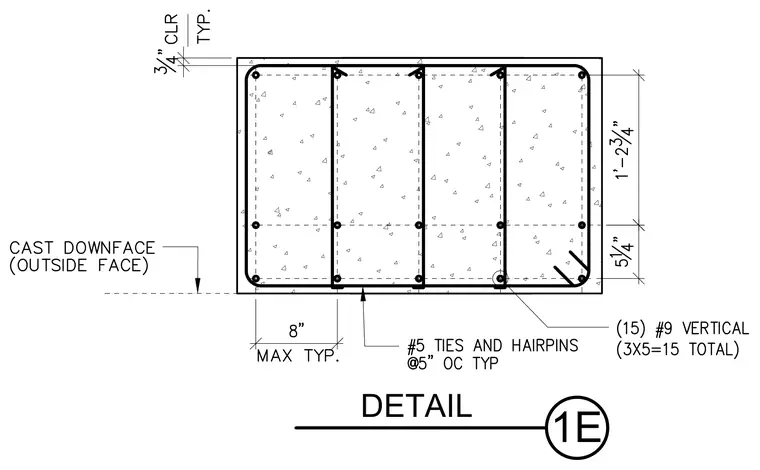

A reinforced concrete wall section details fifteen number nine vertical reinforcing bars arranged with three bars per five groups for fifteen total. Number five ties and hairpins are spaced at five inches on center typically. The outside face is designated as the cast downface. Cover is maintained at three-quarters of an inch typically.
