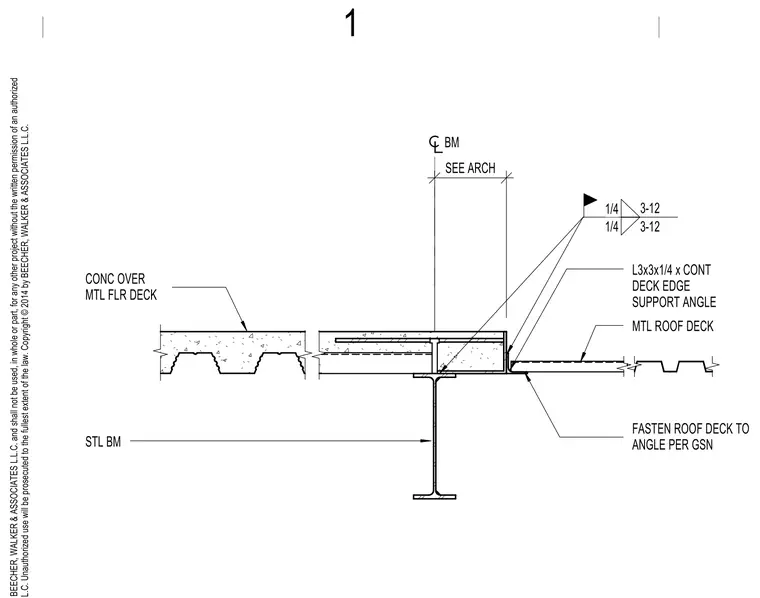

A continuous L3x3x1/4 deck edge support angle provides a transition between a concrete-filled metal floor deck and a metal roof deck at a steel beam centerline. The metal roof deck fastens directly to the support angle per general structural notes. A steel beam supports the assembly as detailed per architectural drawings.
L3x3x1/4 x CONT DECK EDGE SUPPORT ANGLE MTL ROOF DECK 1/4 3-12 1/4 3-12 FASTEN ROOF DECK TO ANGLE PER GSN BM CONC OVER MTL FLR DECK STL BM SEE ARCH 1
