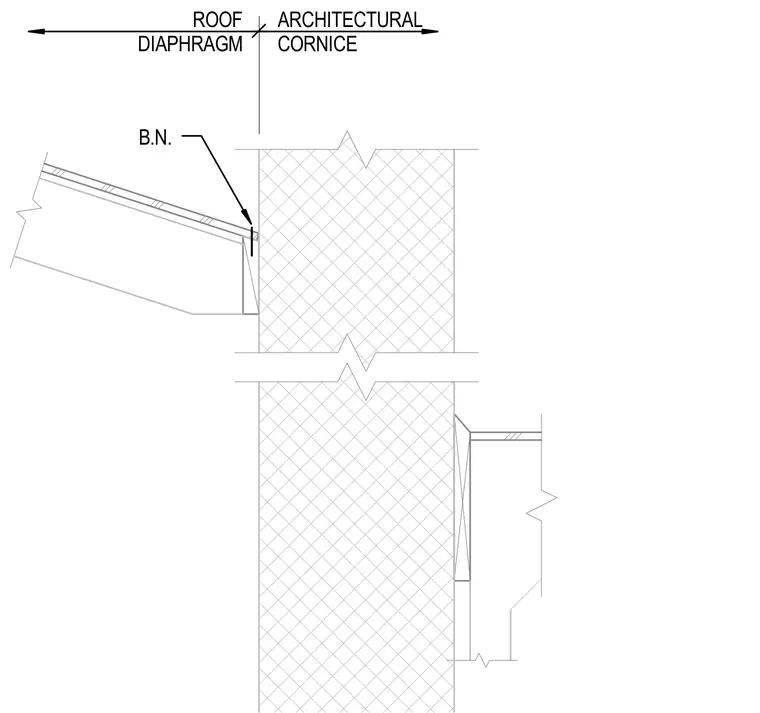

The roof diaphragm abuts an architectural cornice at a vertical wall element. A boundary nailer secures the roof deck termination at the wall interface. A separate lower roof or soffit framing assembly attaches to the opposite side of the wall.
ROOF DIAPHRAGM ARCHITECTURAL CORNICE B.N.
