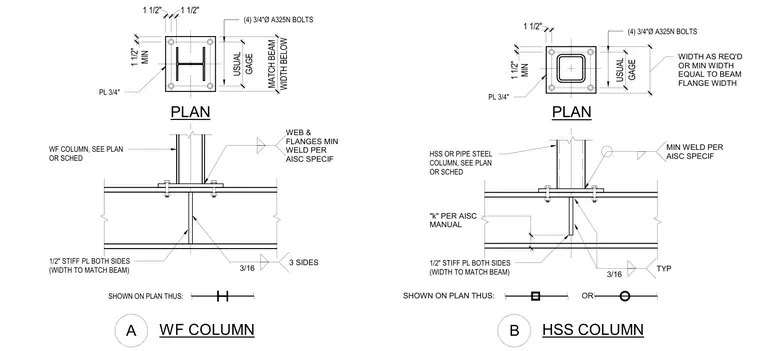

These structural details illustrate steel column base connections supported by a wide-flange beam. The wide-flange column assembly features a three-quarter-inch base plate secured with four three-quarter-inch diameter A325N bolts, welded to the column web and flanges with minimum welds per AISC specifications. Stiffener plates measuring one-half-inch thick are welded to both sides of the supporting beam web with three-sixteenth-inch welds on three sides. The hollow structural section or pipe column assembly similarly utilizes a three-quarter-inch base plate and four three-quarter-inch diameter A325N bolts, with column-to-base plate welds per AISC and matching stiffener plate configurations below.
SHOWN ON PLAN THUS: 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) WF COLUMN, SEE PLAN OR SCHED PL 3/4" SHOWN ON PLAN THUS: OR HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL (4) 3/4"Ø A325N BOLTS HSS COLUMN A WF COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN 3/16 3 SIDES WEB & FLANGES MIN WELD PER AISC SPECIF MIN 1 1/2" 1 1/2" GAGE USUAL MIN 1 1/2" 1 1/2" 1 1/2" GAGE USUAL WIDTH BELOW MATCH BEAM MIN WELD PER AISC SPECIF 3/16 TYP WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH
