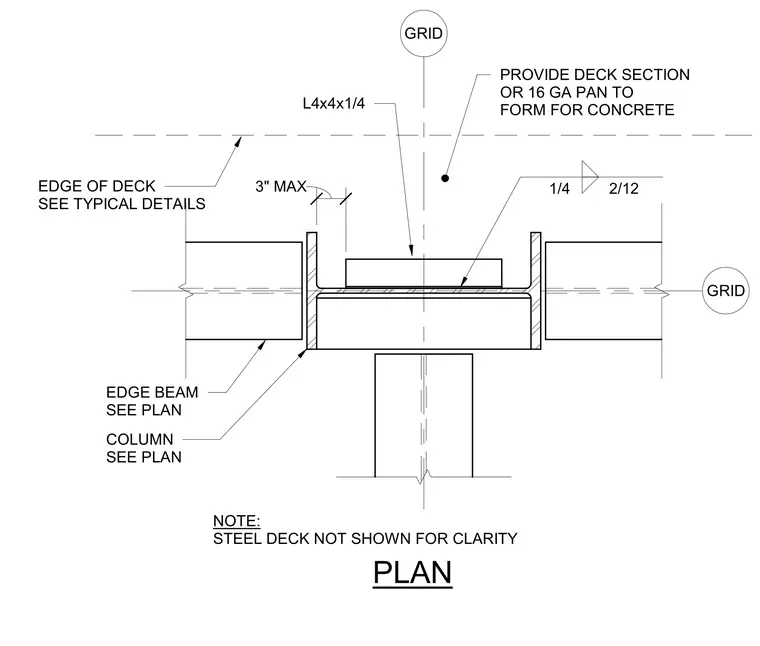

This structural plan detail shows an exterior column supporting an edge beam sized per plan with a maximum three-inch clearance. An L4x4x1/4 angle and a deck section or sixteen gauge metal pan are provided to form the concrete. The steel deck is omitted from the drawing for clarity.
GRID GRID PROVIDE DECK SECTION OR 16 GA PAN TO FORM FOR CONCRETE COLUMN SEE PLAN EDGE BEAM SEE PLAN EDGE OF DECK SEE TYPICAL DETAILS L4x4x1/4 1/4 2/12 3" MAX NOTE: STEEL DECK NOT SHOWN FOR CLARITY PLAN
