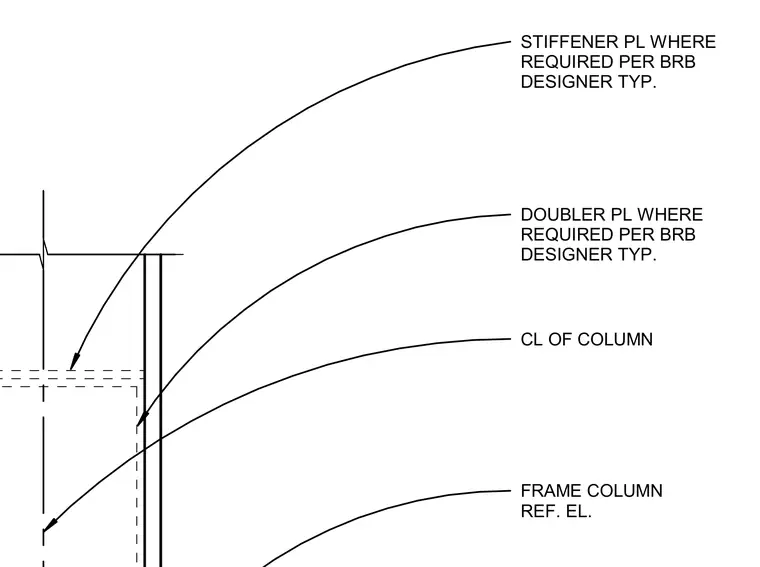

This structural detail indicates the typical placement of stiffener plates and doubler plates at a frame column center line as required by the buckling-restrained brace designer. Stiffener plates and doubler plates are added to the column web and flanges to handle high localized forces from the brace connection.
CL OF COLUMN FRAME COLUMN REF. EL. DOUBLER PL WHERE REQUIRED PER BRB DESIGNER TYP. STIFFENER PL WHERE REQUIRED PER BRB DESIGNER TYP.
