A structural post is secured by a ten-inch by seven-inch by half-inch base plate welded with a three-sixteenths fillet weld. The assembly is anchored to an existing foundation slab using four three-quarters-inch diameter F1554 Grade 55 threaded rods with adhesive, embedded ten inches deep into the concrete. The housekeeping pad is poured with its top of pad elevation matching the edge of the existing generator pad. Gussets are omitted for clarity, with brace locations referenced per the structural plan.

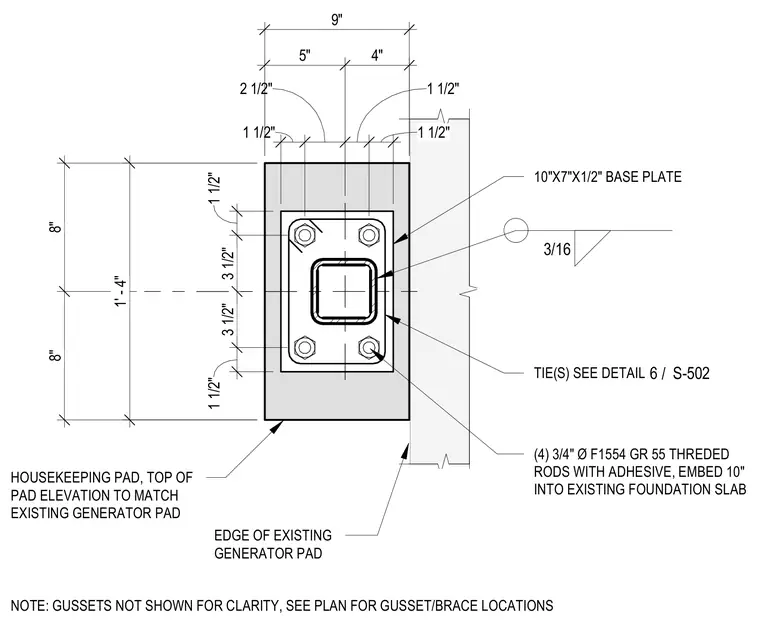

1 1/2" 3 1/2" 3 1/2" 1 1/2" 1 1/2" 2 1/2" 1 1/2" 1 1/2" 5" 4" 8" 8" 10"X7"X1/2" BASE PLATE 3/16 (4) 3/4" Ø F1554 GR 55 THREDED RODS WITH ADHESIVE, EMBED 10" INTO EXISTING FOUNDATION SLAB HOUSEKEEPING PAD, TOP OF PAD ELEVATION TO MATCH EXISTING GENERATOR PAD EDGE OF EXISTING GENERATOR PAD 9" 1' - 4" TIE(S) SEE DETAIL / 6 S-502 NOTE: GUSSETS NOT SHOWN FOR CLARITY, SEE PLAN FOR GUSSET/BRACE LOCATIONS
