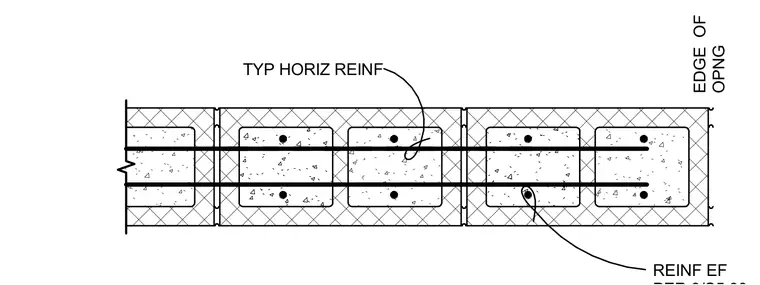

Horizontal reinforcing bars run continuously through concrete masonry unit cells at the edge of an opening. Typical horizontal reinforcement extends through the block cores, which are filled with grout. Additional reinforcement is placed at each face of the wall.
