Level 7 and 8 Jamb Support and Railing Connection

Materials

Steel

Elements

Walls Railings / Guards Floors / Slabs Arches Connections / Plates

Connections

HSS Connection Bolted Connection Expansion / Slip Connection

About this detail

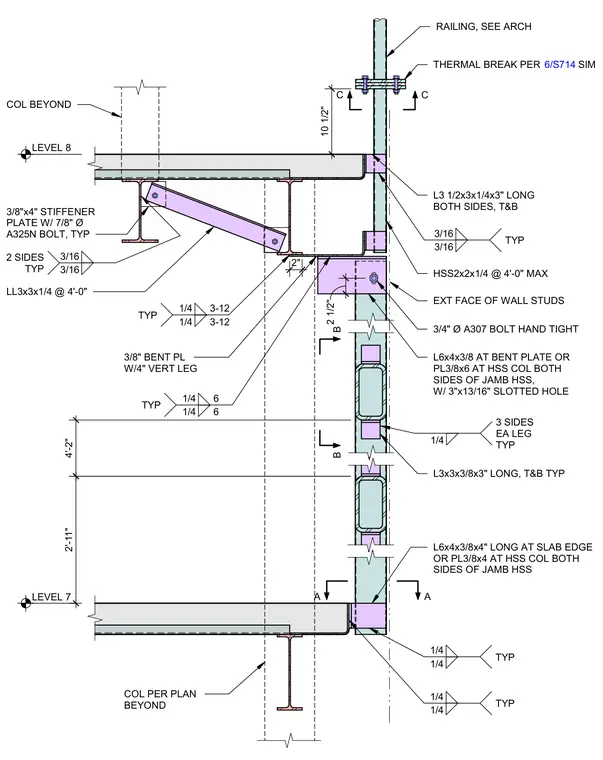

Structural steel framing, jamb support, and railing connections occur between Level 7 and Level 8 floor slabs. The assembly incorporates hollow structural section members, angle clips, bent plates, and stiffener plates fastened with bolts and welded connections. A thermal break is provided at the railing connection in accordance with architectural drawings. Wall stud framing and exterior face of wall conditions align with the intermediate hollow structural section members spaced at four feet maximum.
