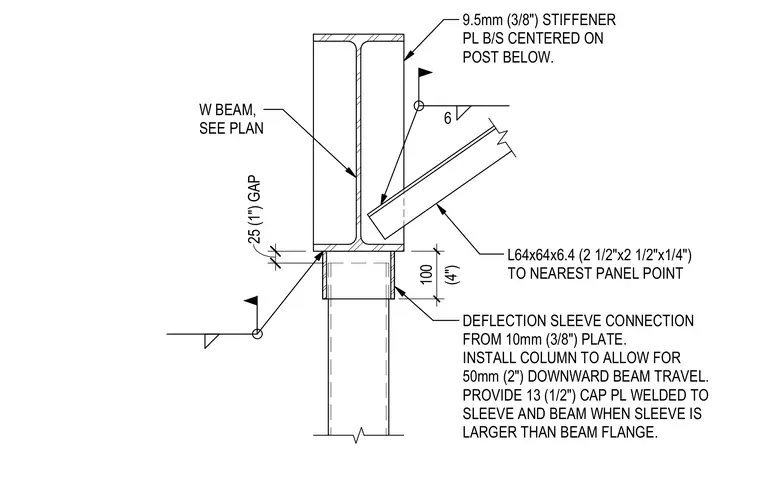

A wide flange beam sits above a post with a deflection sleeve connection formed from a ten millimeter or three-eighths inch plate, engineered to allow fifty millimeters or two inches of downward beam travel. A thirteen millimeter or one-half inch cap plate is welded to the sleeve and beam when the sleeve exceeds the beam flange width. A nine-point-five millimeter or three-eighths inch stiffener plate is centered on the post below, and an L64x64x6.4 or two-and-a-half by two-and-a-half by one-quarter inch angle extends to the nearest panel point.
W BEAM, SEE PLAN DEFLECTION SLEEVE CONNECTION FROM 10mm (3/8") PLATE. INSTALL COLUMN TO ALLOW FOR 50mm (2") DOWNWARD BEAM TRAVEL. PROVIDE 13 (1/2") CAP PL WELDED TO SLEEVE AND BEAM WHEN SLEEVE IS LARGER THAN BEAM FLANGE. 9.5mm (3/8") STIFFENER PL B/S CENTERED ON POST BELOW. L64x64x6.4 (2 1/2"x2 1/2"x1/4") TO NEAREST PANEL POINT 6 25 (1") GAP (4") 100
